Environmental protection industry

2020-05-19
With the deepening of global industrialization, the living environment of human beings is increasingly harmed by the pollutants produced by life and production. With the improvement of China's economic environment, people pay more and more attention to the improvement of living environment. Environmental protection and environmental monitoring have become an important work for us to make rational use of environmental resources and protect the ecological environment. Topsee company is developing a set of microwave wireless environmental monitoring video monitoring system according to the characteristics of environmental protection industry video monitoring, which can transmit video data to environmental monitoring department through WLAN data network without users laying special network lines, so that environmental protection department can really understand the environmental situation on site. The system can be widely used in wastewater monitoring, waste gas emission monitoring, geological disaster monitoring in remote mountainous areas, remote hydrological station hydrological data monitoring and other environments.

1、 System features and functions

The monitoring of "three wastes" in production enterprises belongs to the compulsory monitoring system of environmental protection department. At present, local environmental protection departments need to transmit video images of the scene environment to the environmental protection monitoring center for centralized monitoring in order to enhance the centralized remediation of local key pollution sources. Because of the large number and wide distribution of these monitoring points, some of them are also built in remote mountainous areas, it is difficult to lay wired communication lines, so it is relatively difficult for each remote communication base station to configure video monitoring system.

1. Provide WiFi / Internet access;

2. Direct transmission of image on 2.4G microwave wireless network using TCP / IP protocol, strong real-time;

3. Have system configuration and maintenance interface;

4. Image transmission has a unique function of error correction and retransmission;

5. Anti interference design, suitable for the application requirements of electromagnetic environment;

6. The mechanical structure is solid and suitable for working in outdoor environment;

7. The mechanical structure is solid and suitable for working in outdoor environment;

8. Later period, no monthly rent;

9. The field image of 16 pictures can be monitored on the same screen.

10. Clear image, no mosaic, continuous storage

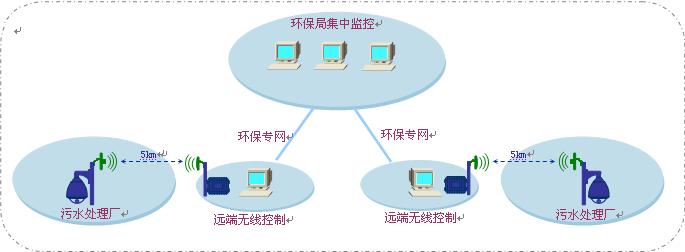

2、 Application examples and diagrams

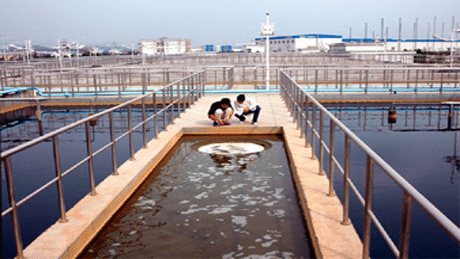

Mianyang Environmental Protection Bureau, Sichuan Province, through the microwave wireless remote video monitoring system, centralized remediation and monitoring of local key pollution sources and sewage treatment plants.
