Business hall remote video management and monitoring system
2020-05-19The actual situation and development needs, to meet the security monitoring of the whole place of the business hall, the management of the circular mirror and the understanding of the flow of guests, as well as the attendance of the staff on duty, the mental state of the staff on duty, the politeness of the staff to the customers, etc.; also with the rapid development of the economy, especially the service quality requirements of the customers on the power system The improvement makes the management problem of the power system to the scattered business hall more and more serious. Under the current situation of limited management manpower, the actual situation and development need to meet the security monitoring of the whole place of the business hall, the management of the circular mirror and the understanding of the flow of guests, the attendance of the staff on and off duty, the mental state of the staff on duty, and the staff's courtesy to the customers Appearance, etc.; with the rapid development of economy, especially the improvement of customers' requirements for the service quality provided by the power system, the management problem of the power system to the decentralized business hall is becoming more and more serious. In the current situation of limited management manpower, technology security, technology reconnaissance, remote image secret access, network attendance system are the "effective management" to solve the current power system The necessary means of contradiction between "reason" and "economic cost". In order to meet the needs of remote management of business offices scattered in different geographical locations, according to the principle of "combination of civil defense, technical defense and physical defense" and the design idea of "strict, reasonable, reliable, economic and perfect", we can truly achieve effective management and timely management. Under the condition of limited human resources, we can improve work efficiency, reasonably allocate human resources, and make the status of the whole system as follows: Effect management. Tianshitong technology and XXX company jointly designed the "remote video monitoring attendance management system" for the region, and established the business hall monitoring attendance management system focusing on digital video monitoring and attendance, contributing to the efficiency improvement of the power system.
Demand analysis and design purpose:
Demand analysis: this top project takes the information center of XX system as the attendance monitoring center, multiple sub control centers (fully implemented by the desktop PC of the functional manager), and the business hall is equipped with one network intelligent ball machine (monitoring point) + one attendance machine. When the staff swipes the card on and off duty, the intelligent ball machine automatically transfers to the set position of the swiping machine, records the whole process of swiping the card and sends it to the attendance monitoring center. When there is no swiping the card, the remote monitoring functional manager can control or patrol the monitoring at will, so as to realize the real-time monitoring of multiple points.
Project difficulty analysis and solution: the biggest difficulty of the project is the bandwidth required for the image signal of the camera point to be transmitted to the monitoring center. Because the transmission network is completely completed by using the original office special network, and the bandwidth occupied by video images in each business hall cannot be greater than 250K (25 frames, 352 * 288 pixels), it is impossible to use general network cameras. Only using low bit stream and high-definition streaming media (wmv) network cameras can solve the problem.
System analysis: the above analysis and solutions can fully deploy the video monitoring points of the scattered business hall in the region, control and monitor any business hall in any desktop computer of XX special network, realize the real-time video monitoring of the whole regional business hall from multiple points to multiple points, and the leaders can also use the desktop office PC to quickly, intuitively and accurately understand the base The working conditions of the first tier and the site conditions of emergencies. The best communication transmission network: Ethernet is connected to the local area network of the business hall, and then to the special network of XX system, which makes full use of the original basic network to avoid the problem of repeated investment.
Sub control center: distributed monitoring center, fully using the desktop PC of functional manager, saving equipment investment.
Centralized attendance: transfer the talents of decentralized staff and remote intelligence to the remote talent monitoring server to form a remote centralized attendance system.
Visit in secret at any time: visit the situation of staff, working environment, customer density, etc. in secret at any time to solve the shortage of human resources management. Remote security monitoring: 24-hour real-time monitoring to reduce the number of security cases and ensure the safety of one party.

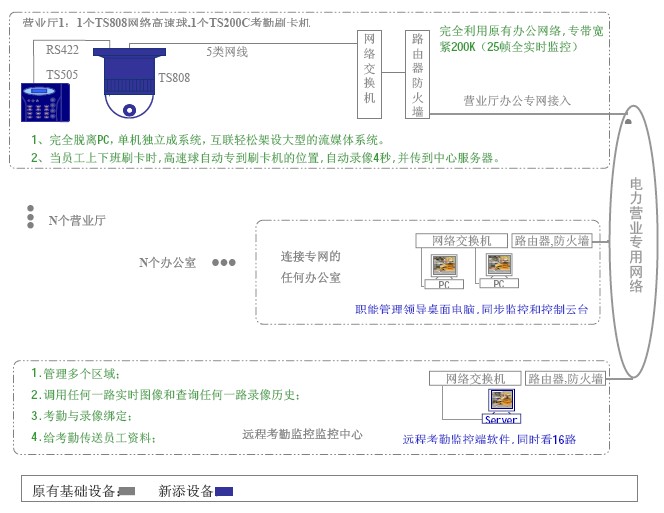

System diagram:
Demand analysis and design purpose:
Demand analysis: this top project takes the information center of XX system as the attendance monitoring center, multiple sub control centers (fully implemented by the desktop PC of the functional manager), and the business hall is equipped with one network intelligent ball machine (monitoring point) + one attendance machine. When the staff swipes the card on and off duty, the intelligent ball machine automatically transfers to the set position of the swiping machine, records the whole process of swiping the card and sends it to the attendance monitoring center. When there is no swiping the card, the remote monitoring functional manager can control or patrol the monitoring at will, so as to realize the real-time monitoring of multiple points.
Project difficulty analysis and solution: the biggest difficulty of the project is the bandwidth required for the image signal of the camera point to be transmitted to the monitoring center. Because the transmission network is completely completed by using the original office special network, and the bandwidth occupied by video images in each business hall cannot be greater than 250K (25 frames, 352 * 288 pixels), it is impossible to use general network cameras. Only using low bit stream and high-definition streaming media (wmv) network cameras can solve the problem.
System analysis: the above analysis and solutions can fully deploy the video monitoring points of the scattered business hall in the region, control and monitor any business hall in any desktop computer of XX special network, realize the real-time video monitoring of the whole regional business hall from multiple points to multiple points, and the leaders can also use the desktop office PC to quickly, intuitively and accurately understand the base The working conditions of the first tier and the site conditions of emergencies. The best communication transmission network: Ethernet is connected to the local area network of the business hall, and then to the special network of XX system, which makes full use of the original basic network to avoid the problem of repeated investment.
Sub control center: distributed monitoring center, fully using the desktop PC of functional manager, saving equipment investment.
Centralized attendance: transfer the talents of decentralized staff and remote intelligence to the remote talent monitoring server to form a remote centralized attendance system.
Visit in secret at any time: visit the situation of staff, working environment, customer density, etc. in secret at any time to solve the shortage of human resources management. Remote security monitoring: 24-hour real-time monitoring to reduce the number of security cases and ensure the safety of one party.
System diagram:
