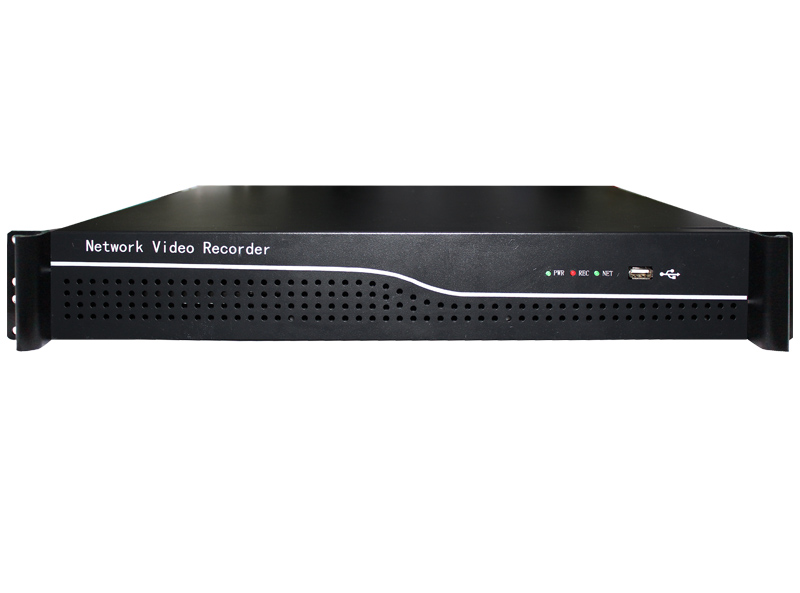

TS8436M2 36-ch 1.5U 4K H265+NVR
Technical hotline:
18123984685- 36-ch
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- Two-Way Audio2-ch, 3.5mm MIC
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability36-ch@8 MP (30 fps)
- Synchronous Playback4-ch 5MP
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, DNS,RTSP, NTP, SMTP, HTTPS,NTP,ONVIF
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 16TB capacity for each disk
- USB Interface2 × USB 2.0 1 × USB 3.0
- General
- Power Supply12 VDC, 5 A
- Consumption≤ 2 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Chassis1.5U
- Dimension (W × D × H)363× 439 × 70 Mm
- ≤ 4KG
|
Orders |
Specification |
TS8436M2 4 Disks 36CH H.265+ NVR |
|
1 |
System structure |
Embedded Linux design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP Network Video Access. |
|
Main processor Hi3796MV200; |
||
|
2 |
Video input |
Access to HD IPC,support each channel double stream access ,support automatic search、video、preview and without debugging |
|
Access bandwidth 256Mbps; |
||
|
3 |
Video output |
1channel HDMI output,support 4K (3840×2160)/30Hz,1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show; |
|
1 channel VGA output,homology with HDMI,support 1920×1080,1440×900,1366×768, 1280×1024,1280×800,1024×768 resolution output show; |
||
|
1/2/4/6/8/9/10/16/25/36 pictures real time preview; |
||
|
Support Seetong client preview,APP preview and seconds connection |
||
|
4 |
Video recording resolution |
Support 720P/960P/1080P/3MP/4MP/5MP/4K; |
|
5 |
Video Capacity |
Support H.265+/H.265/H.264 decoding; |
|
NVR local recording playback support 8*2MPor 1*4K; Seetong client recording playback support 4 channels. |
||
|
6 |
Audio |
1*audio input(2.Vp-p level,1KΩ impedance),support connection pick-up; 1*audio output(linear level;600Ω impedance),support connect power amplifier speakers;support remote Seetong client two-way voice intercom function,using G.711encoding and decoding standard; |
|
7 |
Storage |
4*SATA disk interface,support 18TB capacity; |
|
Support schedule record, motion detection,IO alarm linkage record; |
||
|
Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup; |
||
|
8 |
User |
Local maximum support for 38 users; |
|
9 |
Network interface |
1* RJ45 network interfaces; support 10/100/1000M self-adaption; reserved 1* RJ45 network interfaces; support 10/100M self-adaption; support TCP/IP, IPv4, DHCP, NTP, RTSP, P2P, SMTP, GB28181 and so on protocols; |
|
10 |
Peripheral interface |
1*RS485 interface,support PELCO agreement of rocker PTZ control keyboard; 1*RS232 serial interface, support transparent transmission channel;1*USB3.0,2*USB2.0, support for the mouse, USB upgrade, import and export; |
|
11 |
Alarm interface |
16 channel switch input,support alarm input;4 channel relay output, support siren/alarm; |
|
12 |
LDE |
1* power,1*record,1*network indicator light; |
|
13 |
Business Functions |
Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service; |
|
14 |
Working Environment |
Temperature -10℃～＋55℃, Humidity 10%～90% RH |
|
15 |
Size and Weight |
1.5U chassis,363×439×70mm, the host weighs about 4052g |
|
16 |
others |
AC 100~240V(50/60Hz) ATX power input, host power consumption<8W (No disk); Support lightning protection, anti-static. |
