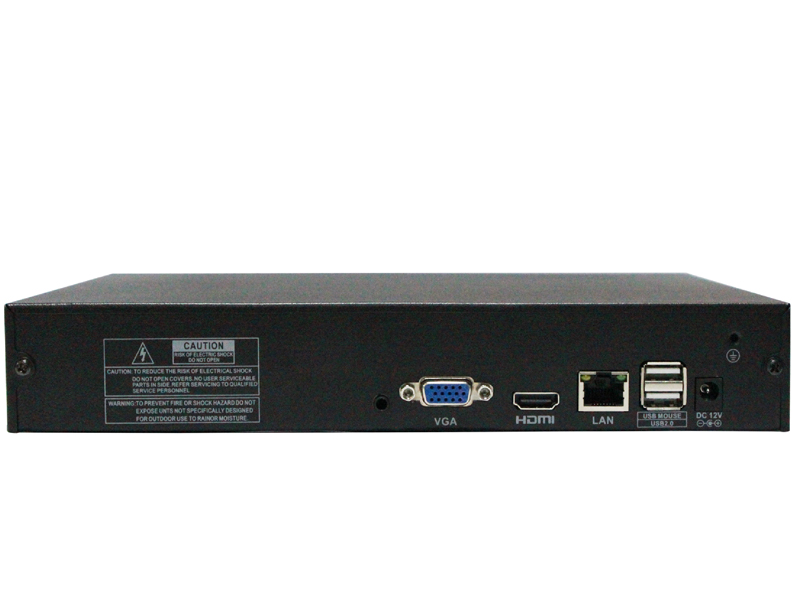

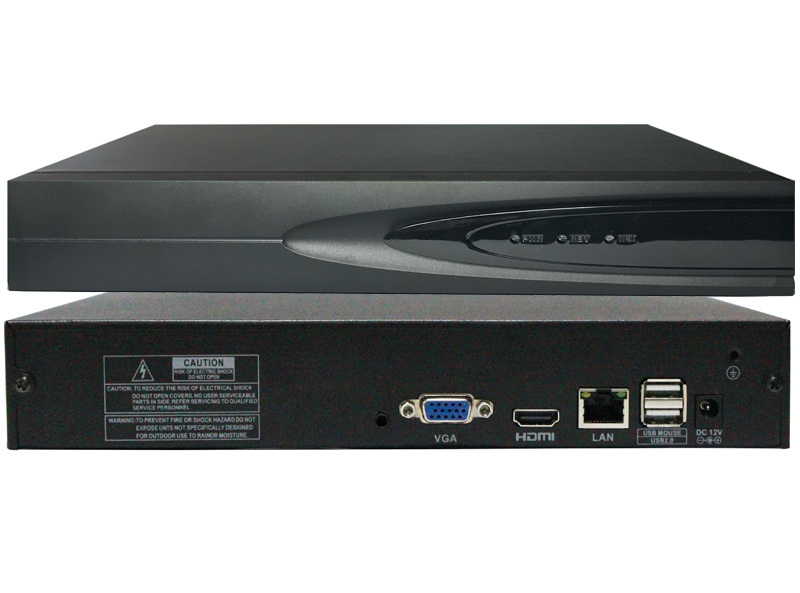

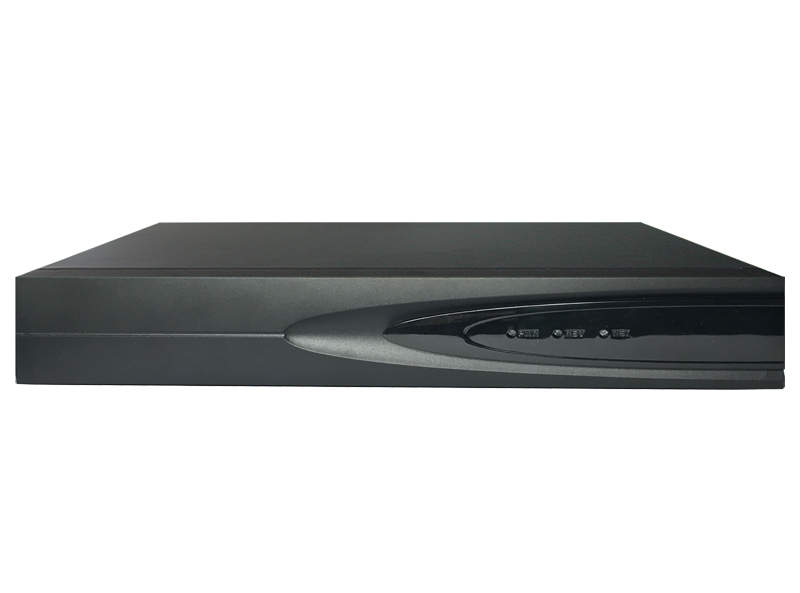

TS8108D35 10-ch 1U 4K NVR

Nvr4.0 H.265 series 10-channel network video recorders
Up to 10-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 10-ch@8 MP decoding capacity Up to 64 Mbps incoming bandwidth

Technical hotline:

18123984685
Online consultation

Orders

Specification

TS8108D33/TS8108D35

1 Disk 10CH H.265+ NVR

1

System Structure

Embedded Linux design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access.

2

Video Input

HD IPC access, each channel support dual stream access, support auto search,add,recording,

preview and without debugging;

Access bandwidth 64Mbps;

3

Video Output

1channel HDMI output,1 channel VGA output,homology with HDMI,support 3840×2160, 2560×1440,1920×1080,1440×900,1366×768,1280×1024,1280×800,1024×768 resolution output show;

Support Seetong client preview,APP preview and seconds connection

1/2/4/6/8/9/10 pictures real time preview;

4

Video recording resolution

Support 720P/960P/1080P/3MP/4MP/5MP;

5

Video Capacity

Support H.265+/H.265/H.264 decoding;

NVR local recording playback support 2CH (2*5MP); Seetong client recording playback support 2 channels.

6

Audio

Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback;

7

Storage

1*SATA hard disk interface,support 14TB capacity;

Support schedule record, motion detection linkage record, alarm linkage record, cross-border record, regional invasion record, license plate record, human face record, human form record, vehicle form record;

Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup;

8

User

Local maximum support for 38 users;

9

Network Interface

1*RJ45 Ethernet interface, support 10/100M self-adaption;support TCP/IP, IPv4, DHCP, NTP, RTSP, P2P, SMTP, GB28181 and so on protocols;

10

Peripheral Interface

2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export;

11

Front Panel

1* power,1*record,1*network indicator light;

12

Buzzer

Do not supported buzzer alarm;

13

Business Functions

Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service;

14

Working Temperature

-10℃～＋55℃

15

Working Humidity

10%～90%

16

Others

DC +12V/2A power input, hots power consumption≤2W (No disk), size 255*210*42mm (W*D*H), weight 566.7g, support wall hanging;

17

Extensible Interface

Expanded DC12V power input interface,Expanded USB interface,Expanded RJ45 Interface,Buzzer interface
