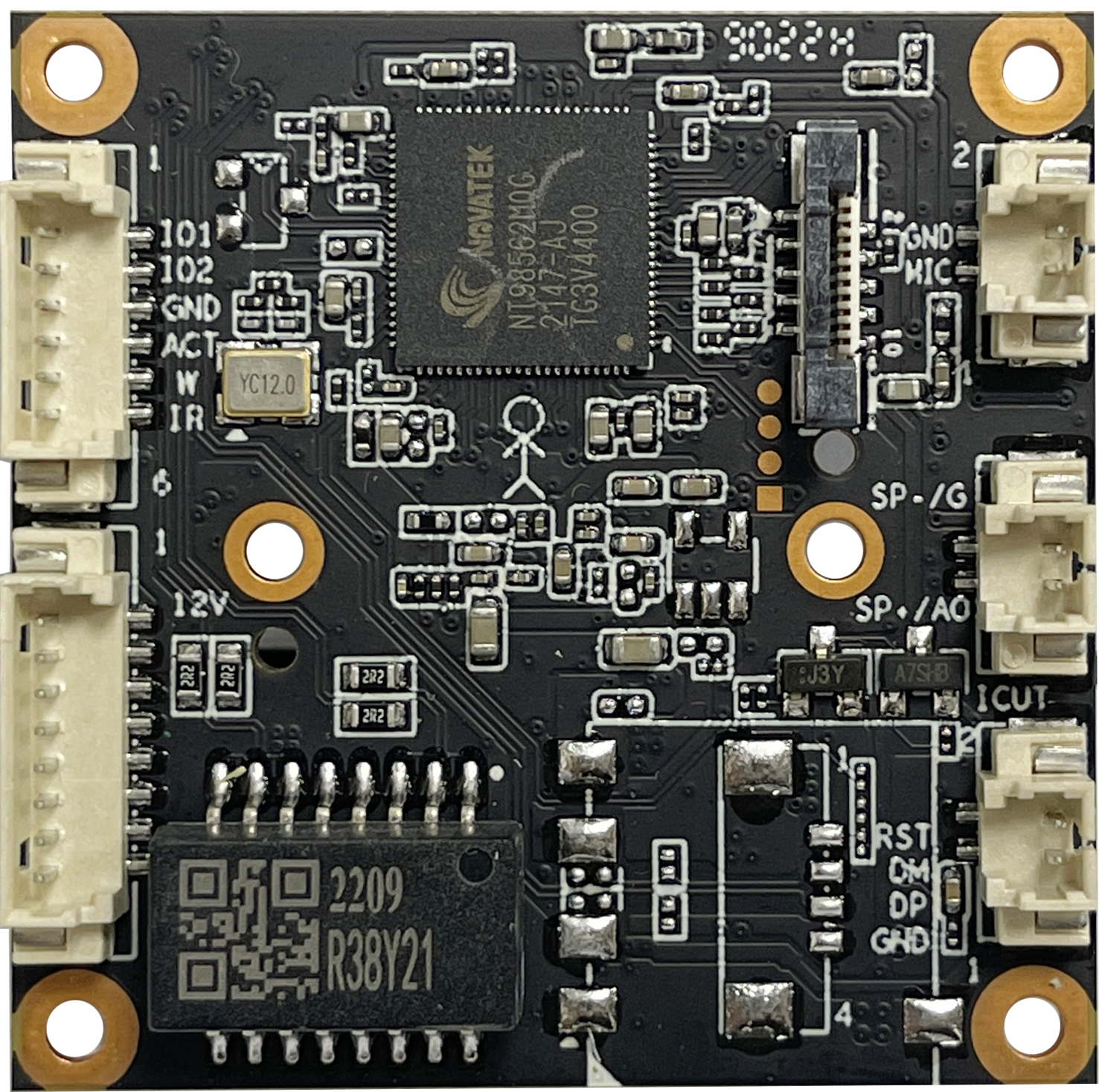

4 MP 38*38mm dual light

TR38Y21
3MP,low power consumption.full netcom, H.265+

Technical hotline:

18123984685

Order

Specification

1

System

Structure

Embedded RTOS design, dual core;32 bits DSP,pure hardware compression, watch dog,8MB FLASH,512Mb DDR3;;

2

Sensor

4MP 1/3" CMOS,0.001Lux@F1.2(color),0Lux(IR ON);integrate IR-CUT drive, support linkage control between Sensor &IR-CUT& photosensitive& LED fill light, support day/night switch;

3

Video Process

H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC

4

Frame Rates

4MP@25 FPS;3MP and below @30FPS

5

Image Output

Main stream:2560×1440,2304×1296,1920×1080;

Sub stream:800×448,720×480,640×480,640×360,480×360,352×288;

6

Audio Interface

1channel input,support mic or pickup input;1channel output, support headset or amplifier play

7

Audio Process

G.711 CODEC standard, support dual voice talkback, audio and video synchronization

8

Network Interface

1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity;support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF and so on network protocols

9

LED Passive Interface

1* IR LED control output interface,1*IRCUT interface, support linkage control between IR-CUT and image.

10

Optional Function

E(POE cable power supply),USB(only support  or UART or IO  or RS485;

11

Business Functions

Configure by WEB, OSD(on screen display),real-time video transmission, motion detection; support remote surveillance client software(Seetong);support mobile monitoring(Iphone, Android),support "Seetong" cloud service;

12

Others

DC12V power input interface,1.176W power consumption, front end power input, light protection,anti-static,anti-inverse connect, support 18V turn off voltage protection; size :38×38×11.6mm,8.6g,without housing PCBA,,38 size single structure

13

Work Conditions

-40℃+85℃

14

Optional Functions

E(POE cable power supply),Extended interface(GPIOUART_TXBUART_RXBIO、IO)
